[555309]

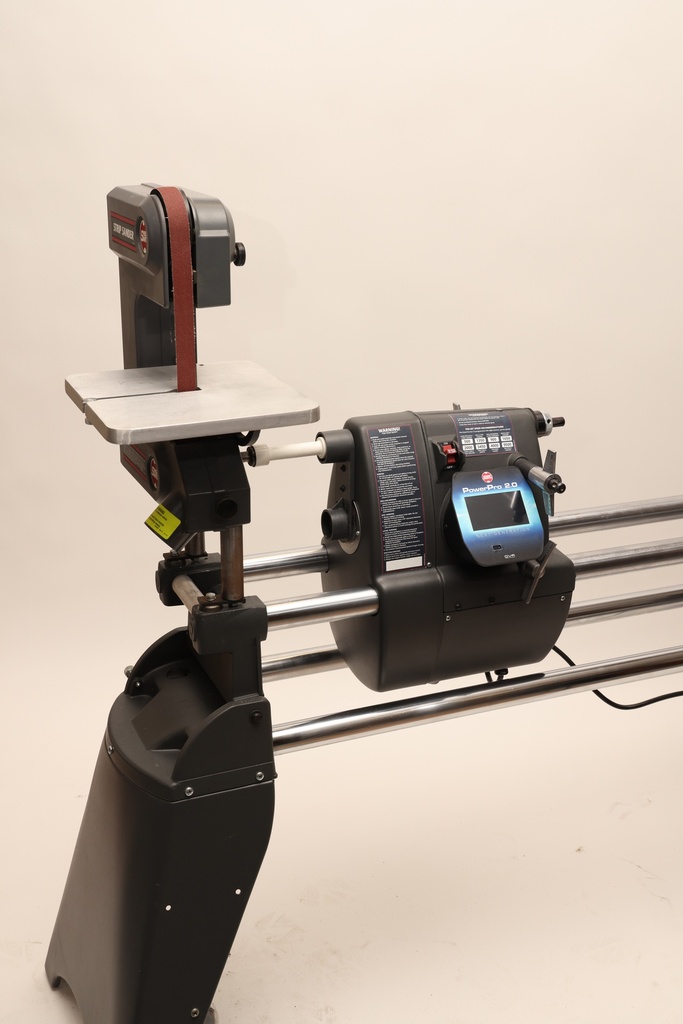

Eliminate tedious hand sanding, shaping, and tool sharpening. The compact, ultra-versatile ShopSmith Strip Sander handles fine detail work across wood, metal, plastic, and bone with ease. Supporting both 1" and 1/2" belts, it offers the performance of a full-sized narrow belt sander engineered specifically for intricate craftsmanship and tool maintenance.
Key Capabilities & Applications
Detail & Craft Sanding: Effortlessly smooth small edges, miniatures, and model components.
Internal Cutout Sanding: Thread belts through pierced openings to sand interior contours easily.
Sharpening & Grinding: Restore sharp edges to chisels, knives, scissors, snips, and outdoor garden tools.
Contour & Curved Sanding: Smooth external curves on valances and decorative trim using the exposed upper tracking wheel or by removing the platens for free-handing.
Multi-Material Shaping: Rapidly shape parts made from plastic, bone, non-ferrous materials, and wood.
Engineered for Accuracy & Efficiency
Die-Cast Aluminum Table (11" x 11"): Generous work surface tilts from 0° to 45° for rock-solid bevel control.
Interchangeable Platens Included: Comes with 1" flat, 1/2" flat, and 1/2" radius curved platens to match flat or contoured workpieces.
Hassle-Free Tension & Tracking: Spring-loaded mechanism maintains constant belt tension, while a single adjustment knob ensures true tracking.
Integrated Dust Port: Standard dust extraction port keeps fine wood particles out of your shop air. (Note: Disconnect dust collection before grinding or sharpening metal to prevent spark ignition).
TECHNICAL SPECIFICATIONS | DETAILS |
Belt Sizes | Accommodates 1" x 42" and 1/2" x 42" sanding belts |
Table Size & Tilt | 11" x 11" | Tilts from 0° to 45° |
Throat Depth | 6" Behind platen |
Max Stock Thickness | External: 4" |
Operating Speed | 700 – 2,500 RPM (recommended) |
Dimensions & Weight | 7" L x 11" W x 15" D | 21lbs shipping weight |
System Compatibility | Powered via MARK system or Power Station (Power Coupler required) |
Enhance Your Setup with the Chisel Sharpening Attachment
Transform your ShopSmith Strip Sander into a dedicated sharpening station for bench and lathe chisels in under two minutes. Replaces the main table with a specialized angle platen and handle guide for consistent, razor-sharp bevels every time. Included with attachment: specialized platen, upper drum guard, and superfine belt kit.
Save with the Complete Package: Bundle the ShopSmith Strip Sander and Chisel Sharpening Attachment together for maximum shop versatility at a discounted price.
Add New Functionality: Already own a ShopSmith Strip Sander? Purchase the Chisel Sharpening Attachment to transform your machine into a precision honing station.
