Jigs & Fixtures are Tools That Make a Big Difference in Project Execution and Accuracy!
Hardware for Assembling Sliding Jigs and Fixtures with parts made to fit Shopsmith Miter Gauge Slots and Rip Fences.

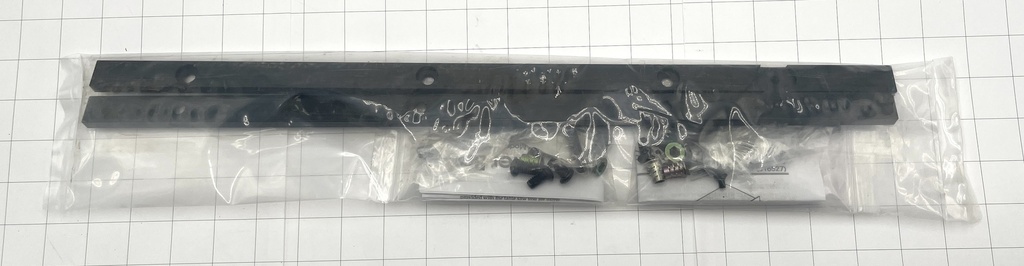

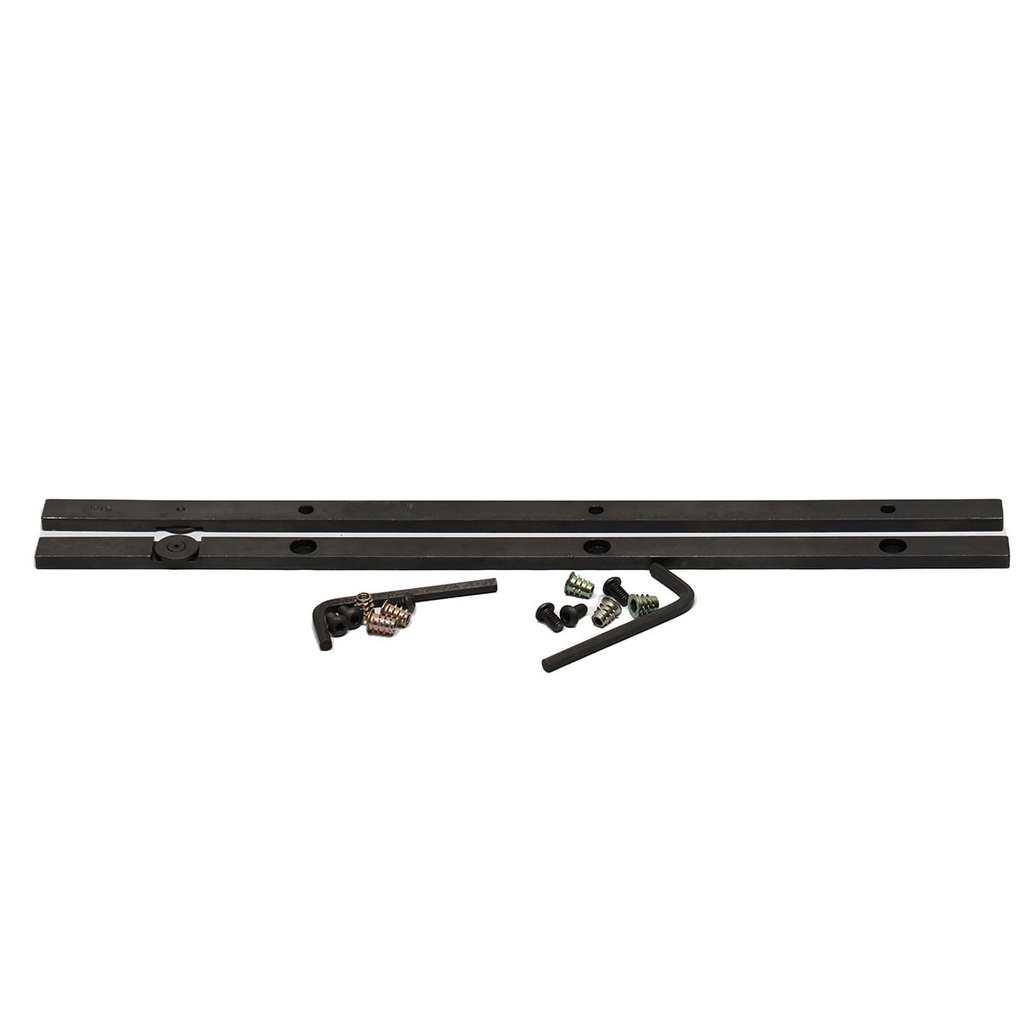

Steel Miter Bars (2-Pack) (555896)
The Steel Miter Bar slides in T-Slot Track and MARK 7/MARK V 505,510,520/MARK 4 Miter Gauge Slots. This Miter Bar Includes T-Slot washer to prevent accidental lift-out and mounting holes with counterbores for Mounting Hardware
(6) 1/4-20 by 1/2" long buttonhead screws
(2) Miter Bars (fit Miter gauge Slots)
(6) ¼-20 Threaded inserts
(1) 6mm Allen Wrench
Sliding T-Bolt 16 Piece System (555915)
Sliding T-Bolt System works with our T-Slot Track, your MARK V worktable or other MARK V accessories.
16-piece Sliding T-Bold System Includes:
• (4) Sliding T-Bolts with permanently mounted, 1-1/2" long, 5/16-18 threaded studs.
• (4) 1" OD black plastic knobs with a through-hole and a 5/16-18 threaded insert.
• (4) 3/8" ID x 7/8" OD steel Washers to distribute pressure over a broader area.
• (4) 5/16" ID x 5/8" OD x 1/4" thick black steel Spacers to shorten tightening distances.
Knobs and Hardware Pack (Work with Sliding T-Nuts (555905)
Small black Knobs & Parts work with Sliding T-Nuts or Threaded Inserts.
17 Piece Knobs and Hardware Pack Includes:
• (4) 1" diameter plastic Knobs come with 1-1/2" long, 1/4 - 20 threaded studs that will screw into our Sliding T-Nuts or threaded inserts.
• (4) 1/4" ID x 1-1/4" OD fender Washers to distribute pressure over a broader area.
• (4) 1/4" ID x 3/4" OD x 3/8" thick black plastic Spacers to shorten tightening distances.
• (4) 1/4 - 20 screw-in Threaded Inserts.
• (1) 6mm Allen Wrench for installing inserts.
T-Nuts & Large Star Knobs Kit (555910)
Large Threaded Knobs & parts screw into Sliding T-Nuts or Threaded Inserts.
Kit consisting of:
• (4) Knobs with threaded studs
• (4) 5/8"x3/8"x3/8" spacers
• (4) Sliding T-Nuts
Knobs with Stud Hardware (1 Inch Diameter Knobs) (4 Pack) (555901)
1" diameter plastic Knobs come with 1-1/2" long, 1/4 - 20 threaded studs that will screw into our Sliding T-Nuts or threaded inserts.
Steel Washers (3/8 Inch ID x 7/8 Inch OD) (4 Pack) (555912)
3/8" ID x 7/8" OD steel Washers to distribute pressure over a broader area.
Universal Clamp
Our Universal clamps can be used to hold rip fence extensions to your rip fence. They can also be used to hold shop-made fixtures on to MARK tables for many other woodworking tasks.
• Universal Clamp (Single) (522805)
• Universal Clamp (Set of 2) (556188)
